Core Orientation
TruCore is an easy-to-use, highly accurate core orientation system featuring step-by-step workflow guidance, wireless communication, and a field-replaceable battery.
The patented TruCore orientation system fits hole sizes ranging from N to P with interchangeable adapters and barrel systems that are easily swapped whenever a change in hole size is required.
5 Reasons To Take Control With TruCore
1
TruCore provides accurate orientation and dip data that geologists, drillers, and engineers rely on.
2
Core orientation is easier with TruCore. There is no need to disassemble the core barrel to obtain an orientation mark.
3
Full-length extended outer tubes eliminate the need for extensions, reducing the number of joints in the drill string for improved reliability.
4
Improve health & safety for drillers by reducing manual handling time and a better ergonomic position when reading core orientations.
5
Make faster decisions on the direction of your hole with more frequent dip measurements.
Barrel Options

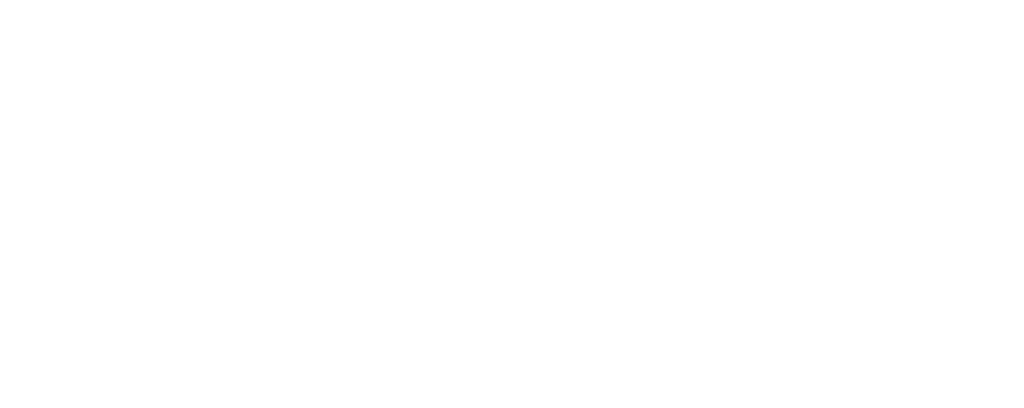

Standard
The standard barrel option is available in dedicated diameters corresponding to B, N, and H size hole applications.
These barrel options combine to cover the complete range of hole sizes from B to P with size-specific inner tube adapters and check valve systems.
Barrel Options

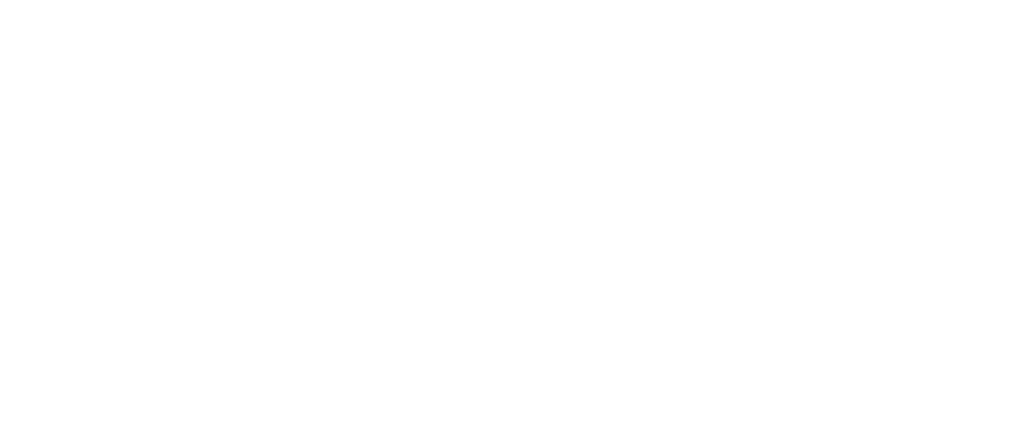

ONE
The ONE option is available in a single N size barrel configuration, but can cover the complete range of hole sizes from N to P with field-replaceable grease caps, inner tube adapters, and check valve systems.
Data Options

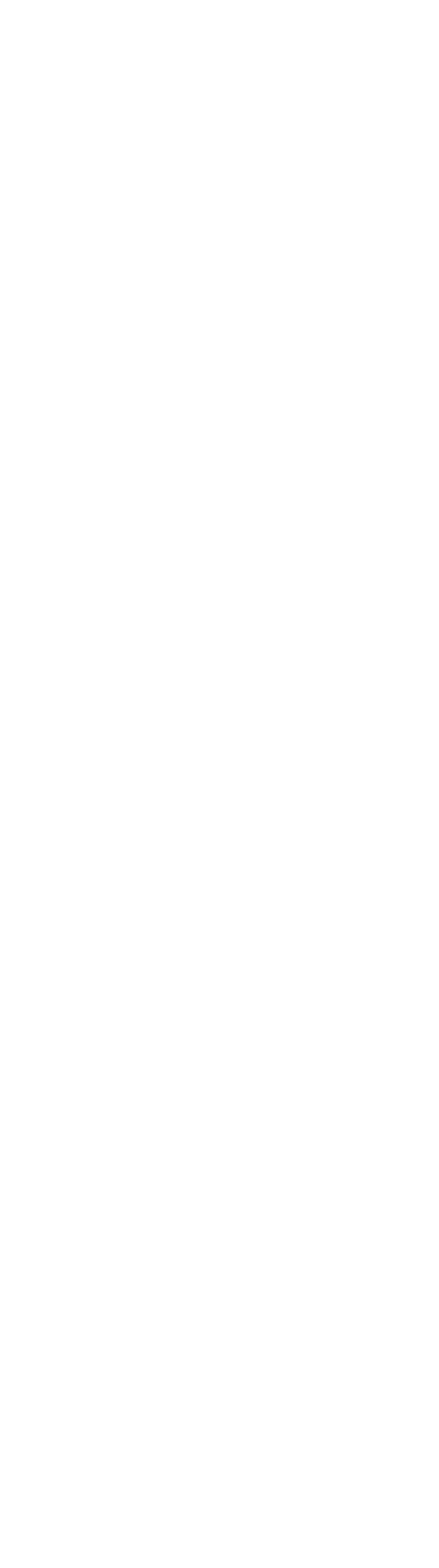

Audit Data
TruCore is available with optional audit data export functionality to provide a complete digital record of every orientation.
Audit data-enabled handhelds are fully backwards compatible with all TruCore tools. The audit data functionality is unlocked through the charging docks featuring a USB port.
Once downloaded, the data can be accessed using Microsoft Excel.
